Compressed Air System In The Animal Laboratory

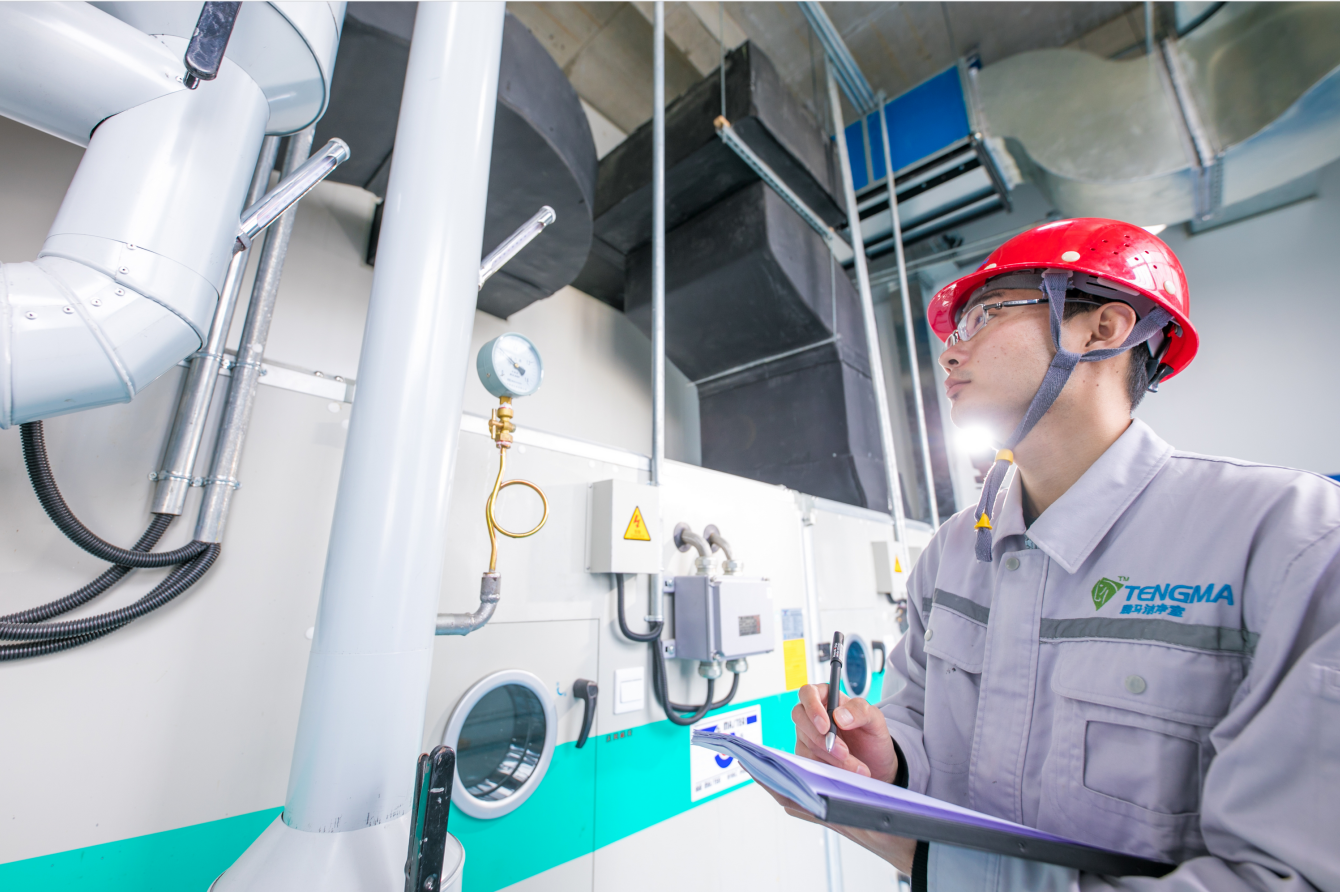

QQ截图20211021115139

1. The compressed air host is installed on the roof of the room. The compressed air must be dried and filtered to ensure the cleanliness of the compressed air. The compressed air pipeline adopts galvanized steel pipe and the working pressure of the pipeline is designed to be 0.8Mpa and the flow rate is 15m/s. Cleanrooms in the laboratory (including corridors) need to be equipped with a compressed air connector, which can spray the disinfectant. The terminal joint adopts a plug-in quick connector, which is 1.3m from the ground and against the wall. The compressed air system also provides the compressed air required for the work of the vacuum sterilizer.
2. Technical specifications and requirements of air compressor equipment:
(1) Type: box-type oil-free scroll air compressor
(2) Control system: intelligent instrument control, compressor status display, performance parameter display, maintenance reminder, compressor control, automatic alarm indication, parameter setting
(3) Exhaust pressure: 0.8MPa
(4) Exhaust volume: 0.40m³/min, allowable deviation value: -3%≤exhaust volume≤+10%;
(5) Noise: 55dB(A)
(6) Cooling form: air cooling
(7) Motor power: 3.7kW, voltage: 380V
(8) Motor protection level: IP55
(9) Motor insulation class: F
(10) To ensure that the technical personnel can correctly and effectively master the operation and maintenance procedures of the air compressor, the winning bidder must provide free professional training and arrange the original factory training plan. Provide the latest information and magazines of air compressors.
3. Technical specifications and requirements of refrigerated dryers:
Treatment capacity: 1.2m³/min, allowable deviation value: -3%≤Treatment capacity≤+10%;
(1) Working pressure: 1.0MPa
(2) Pressure dew point: 3-10℃
(3) Cooling method: air cooling
(4) The cold dryer comes with an automatic drainer
4. Technical specifications and requirements for precision filters
(1) Treatment capacity: 1.2m³/min, allowable deviation value: -3%≤treatment capacity≤+10%;
(2) Working pressure: 1.0MPa
(3) Filtration accuracy: dust content ≤0.01um
(4) Three-stage filter with automatic drainer
5. Technical specifications and requirements for gas storage tanks
(1) The gas storage tank is made of stainless steel
(2) Volume: 0.3 m³, allowable deviation value: -3%≤volume≤+10%;
(3) Working pressure: 0.8MPa
(4) Gas storage tank with automatic drainer
